Example analysis workflow: TAL1 locus.#
Goal: We will explore non-coding T-cell acute lymphoblastic leukemia associated mutations near the TAL1 locus.
T-cell acute lymphoblastic leukemia (T-ALL) is a cancer of the blood and bone marrow. A large fraction of T-ALL cases arise due to aberrant upregulation of the TAL1 oncogene. In particular, the locus harbors positions in which non-coding variants can occur that activate TAL1 gene expression from several kilobases away.
Key activities:
Visualize the genomic context of variants of interest.
Predict the functional impact of a specific variant on gene expression, accessibility, and histone marks.
Systematically compare the predicted effects of known disease-associated variants to a set of background variants.
Tip
Open this tutorial in Google colab for interactive viewing.
# @title Install AlphaGenome
# @markdown Run this cell to install AlphaGenome.
from IPython.display import clear_output
! pip install alphagenome
clear_output()
Imports#
import io
import itertools
from alphagenome.data import gene_annotation
from alphagenome.data import genome
from alphagenome.data import transcript as transcript_utils
from alphagenome.models import dna_client
from alphagenome.models import variant_scorers
from alphagenome.visualization import plot_components
from IPython.display import clear_output
import numpy as np
import pandas as pd
import plotnine as gg
from google.colab import userdata
dna_model = dna_client.create(userdata.get('ALPHA_GENOME_API_KEY'))
We load gene annotations from GENCODE, a public repository of gene information, using annotations with the highest level of experimental support (Transcript Support Level ‘1’).
# Load gene annotations (from GENCODE).
gtf = pd.read_feather(
'https://storage.googleapis.com/alphagenome/reference/gencode/'
'hg38/gencode.v46.annotation.gtf.gz.feather'
)
# Filter to protein-coding genes and highly supported transcripts.
gtf_transcript = gene_annotation.filter_transcript_support_level(
gene_annotation.filter_protein_coding(gtf), ['1']
)
# Define an extractor that fetches only the longest transcript per gene.
gtf_longest_transcript = gene_annotation.filter_to_longest_transcript(
gtf_transcript
)
longest_transcript_extractor = transcript_utils.TranscriptExtractor(
gtf_longest_transcript
)
We further define a few utility functions that we’ll use throughout the notebook.
# @title Utilities
def generate_background_variants(
variant: genome.Variant, max_number: int = 100
) -> pd.DataFrame:
"""Generates a dataframe of background variants for a given variant.
This is done by creating new sequences of the same length as the alternate
allele.
This allows us to test if the specific sequence of the oncogenic variant has a
greater effect than a random sequence of the same length at the same location.
Args:
variant: The variant to generate ism variants for.
max_number: The maximum number of ism variants to generate.
Returns:
A dataframe of variants.
"""
nucleotides = np.array(list('ACGT'), dtype='<U1')
def generate_unique_strings(n, max_number, random_seed=42):
"""Generates unique random strings of length n."""
rng = np.random.default_rng(random_seed)
if 4**n < max_number:
raise ValueError(
'Cannot generate that many unique strings for the given length.'
)
generated_strings = set()
while len(generated_strings) < max_number:
indices = rng.integers(0, 4, size=n)
new_string = ''.join(nucleotides[indices])
if new_string != variant.alternate_bases:
generated_strings.add(new_string)
return list(generated_strings)
permutations = []
if 4 ** len(variant.alternate_bases) < max_number:
# Get all
for p in itertools.product(
nucleotides, repeat=len(variant.alternate_bases)
):
permutations.append(''.join(p))
else:
# Sample some
permutations = generate_unique_strings(
len(variant.alternate_bases), max_number
)
ism_candidates = pd.DataFrame({
'ID': ['mut_' + str(variant.position) + '_' + x for x in permutations],
'CHROM': variant.chromosome,
'POS': variant.position,
'REF': variant.reference_bases,
'ALT': permutations,
'output': 0.0,
'original_variant': variant.name,
})
return ism_candidates
def oncogenic_and_background_variants(
input_sequence_length: int, number_of_background_variants: int = 20
) -> pd.DataFrame:
"""Generates a dataframe of all variants for this evaluation."""
oncogenic_variants = oncogenic_tal1_variants()
variants = []
for vcf_row in oncogenic_variants.itertuples():
variants.append(
genome.Variant(
chromosome=str(vcf_row.CHROM),
position=int(vcf_row.POS),
reference_bases=vcf_row.REF,
alternate_bases=vcf_row.ALT,
name=vcf_row.ID,
)
)
background_variants = pd.concat([
generate_background_variants(variant, number_of_background_variants)
for variant in variants
])
all_variants = pd.concat([oncogenic_variants, background_variants])
return inference_df(
all_variants, input_sequence_length=input_sequence_length
)
def vcf_row_to_variant(vcf_row: pd.Series) -> genome.Variant:
"""Parse a row of a vcf df into a genome.Variant."""
variant = genome.Variant(
chromosome=str(vcf_row.CHROM),
position=int(vcf_row.POS),
reference_bases=vcf_row.REF,
alternate_bases=vcf_row.ALT,
name=vcf_row.ID,
)
return variant
def inference_df(
qtl_df: pd.DataFrame,
input_sequence_length: int,
) -> pd.DataFrame:
"""Returns a pd.DataFrame with variants and intervals ready for inference."""
df = []
for _, row in qtl_df.iterrows():
variant = vcf_row_to_variant(row)
interval = genome.Interval(
chromosome=row['CHROM'], start=row['POS'], end=row['POS']
).resize(input_sequence_length)
df.append({
'interval': interval,
'variant': variant,
'output': row['output'],
'variant_id': row['ID'],
'POS': row['POS'],
'REF': row['REF'],
'ALT': row['ALT'],
'CHROM': row['CHROM'],
})
return pd.DataFrame(df)
def coarse_grained_mute_groups(eval_df):
grp = []
for row in eval_df.itertuples():
if row.POS >= 47239290: # MUTE site.
if row.ALT_len > 4:
grp.append('MUTE' + '_other')
else:
grp.append('MUTE' + '_' + str(row.ALT_len))
else:
grp.append(str(row.POS) + '_' + str(row.ALT_len))
grp = pd.Series(grp)
return pd.Categorical(grp, categories=sorted(grp.unique()), ordered=True)
Assembling variant data#
# @title Define variants of interest
def oncogenic_tal1_variants() -> pd.DataFrame:
"""Returns a dataframe of oncogenic T-ALL variants that affect TAL1."""
variant_data = """
ID CHROM POS REF ALT output Study ID Study Variant ID
Jurkat chr1 47239296 C CCGTTTCCTAACC 1 Mansour_2014
MOLT-3 chr1 47239296 C ACC 1 Mansour_2014
Patient_1 chr1 47239296 C AACG 1 Mansour_2014
Patient_2 chr1 47239291 CTAACC TTTACCGTCTGTTAACGGC 1 Mansour_2014
Patient_3-5 chr1 47239296 C ACG 1 Mansour_2014
Patient_6 chr1 47239296 C ACC 1 Mansour_2014
Patient_7 chr1 47239295 AC TCAAACTGGTAACC 1 Mansour_2014
Patient_8 chr1 47239296 C AACC 1 Mansour_2014
new 3' enhancer 1 chr1 47212072 T TGGGTAAACCGTCTGTTCAGCG 1 Smith_2023 UPNT802
new 3' enhancer 2 chr1 47212074 G GAACGTT 1 Smith_2023 UPNT613
intergenic SNV 1 chr1 47230639 C T 1 Liu_2020 SJALL043861_D1
intergenic SNV 2 chr1 47230639 C T 1 Liu_2020 SJALL018373_D1
SJALL040467_D1 chr1 47239296 C AACC 1 Liu_2020 SJALL040467_D1
PATBGC chr1 47239296 C AACC 1 Liu_2017 PATBGC
PATBTX chr1 47239296 C ACGGATATAACC 1 Liu_2017 PATBTX
PARJAY chr1 47239296 C ACGGAATTTCTAACC 1 Liu_2017 PARJAY
PARSJG chr1 47239296 C AACC 1 Liu_2017 PARSJG
PASYAJ chr1 47239296 C AACC 1 Liu_2017 PASYAJ
PATRAB chr1 47239293 TTA CTAACGG 1 Liu_2017 PATRAB
PAUBXP chr1 47239296 C ACC 1 Liu_2017 PAUBXP
PATENL chr1 47239296 C AACC 1 Liu_2017 PATENL
PARNXJ chr1 47239296 C ACG 1 Liu_2017 PARNXJ
PASXSI chr1 47239296 C AACC 1 Liu_2017 PASXSI
PASNEH chr1 47239296 C ACC 1 Liu_2017 PASNEH
PAUAFN chr1 47239296 C AACC 1 Liu_2017 PAUAFN
PARASZ chr1 47239296 C ACC 1 Liu_2017 PARASZ
PARWNW chr1 47239296 C ACC 1 Liu_2017 PARWNW
PASFKA chr1 47239293 TTA ACCGTTAATCAA 1 Liu_2017 PASFKA
PATEIT chr1 47239296 C AC 1 Liu_2017 PATEIT
PASMHF chr1 47239296 C AC 1 Liu_2017 PASMHF
PARJNX chr1 47239296 C AC 1 Liu_2017 PARJNX
PASYWF chr1 47239296 C AC 1 Liu_2017 PASYWF
"""
return pd.read_table(io.StringIO(variant_data), sep='\t')
oncogenic_tal1_variants().head()
| ID | CHROM | POS | REF | ALT | output | Study ID | Study Variant ID | |
|---|---|---|---|---|---|---|---|---|
| 0 | Jurkat | chr1 | 47239296 | C | CCGTTTCCTAACC | 1 | Mansour_2014 | NaN |
| 1 | MOLT-3 | chr1 | 47239296 | C | ACC | 1 | Mansour_2014 | NaN |
| 2 | Patient_1 | chr1 | 47239296 | C | AACG | 1 | Mansour_2014 | NaN |
| 3 | Patient_2 | chr1 | 47239291 | CTAACC | TTTACCGTCTGTTAACGGC | 1 | Mansour_2014 | NaN |
| 4 | Patient_3-5 | chr1 | 47239296 | C | ACG | 1 | Mansour_2014 | NaN |

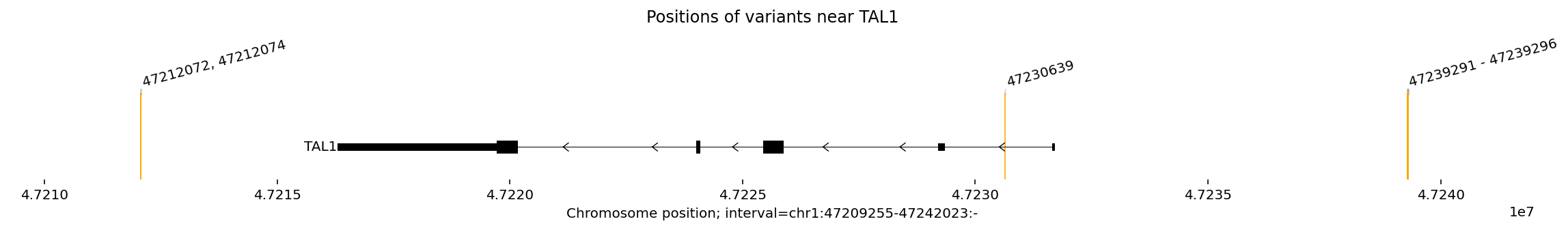

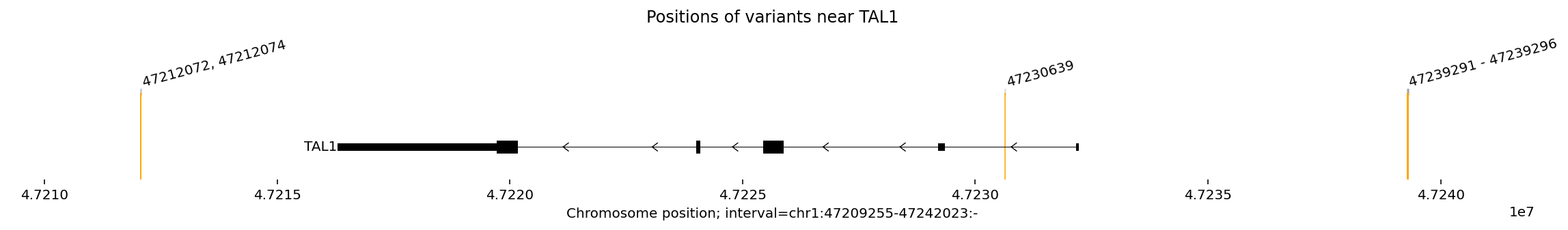

To get a sense of where these variants lie, we will visualize the variants in the table above in a ~30kb interval centered around the TAL1 gene.
# @title Visualise variant positions.
# Define TAL1 interval.
tal1_interval = genome.Interval(
chromosome='chr1', start=47209255, end=47242023, strand='-'
)
# Gather unique variant positions and plot labels.
unique_positions = oncogenic_tal1_variants()['POS'].unique()
unique_positions.sort()
# Manually define labels to avoid overplotting.
labels = [
'47212072, 47212074',
'',
'47230639',
'47239291 - 47239296',
'',
'',
'',
]
# Build plot.
_ = plot_components.plot(
[
plot_components.TranscriptAnnotation(
longest_transcript_extractor.extract(tal1_interval)
),
],
annotations=[
plot_components.VariantAnnotation(
[
genome.Variant(
chromosome='chr1',
position=x,
reference_bases='N',
alternate_bases='N',
)
for x in unique_positions
],
labels=labels,
use_default_labels=False,
)
],
interval=tal1_interval,
title='Positions of variants near TAL1',
)
From the plot, we can see that the TAL1 gene is transcribed from right to left as it is on the (-) strand.
From right to left, we see three positional groups:
a cluster of several 5’ variants upstream of TAL1 (Mansour et al. 2014, Liu et al. 2017). This is also called the MuTE (“mutation of the TAL1 enhancer”) site.
an intronic variant (Liu et al. 2020).
a 3’ cluster of two variants downstream of TAL1 (Smith et al. 2023).
In the original studies, all three variant groups were shown to converge on a common mechanism: upregulation of the TAL1 oncogene.
Exploring individual variant outcomes#
Next, let’s plot the predicted effect of one of these variants.
# Define the variant of interest.
variant = vcf_row_to_variant(oncogenic_tal1_variants().iloc[0])
variant
Variant(chromosome='chr1', position=47239296, reference_bases='C', alternate_bases='CCGTTTCCTAACC', name='Jurkat')
# Define the ontology of interest
ontology_terms = ['CL:0001059']
To make predictions relevant to a specific biological context, we provide the
model with an ontology term. Here, we use CL:0001059' which corresponds to
“common myeloid progenitor, CD34-positive”.
This is a close match to the tissue-of-origin reported in the
Mansour et al. 2014 (“purified
normal hematopoietic stem cell samples (CD34)”), which used purified
hematopoietic stem cells based on CD34 marker expression.
To make predictions, we’ll specify the interval (resized to an input sequence
length of 2^20 = 1,048,576 bp). We’ll also pass in our requested_outputs
field, which indicates to the model to predict three types of outputs: RNA-seq
(a measure of gene expression), DNAse-seq (a measure of DNA accessibility), and
ChIP-Histone (a measure of histone modifications, which can indicate active or
repressed chromatin states).

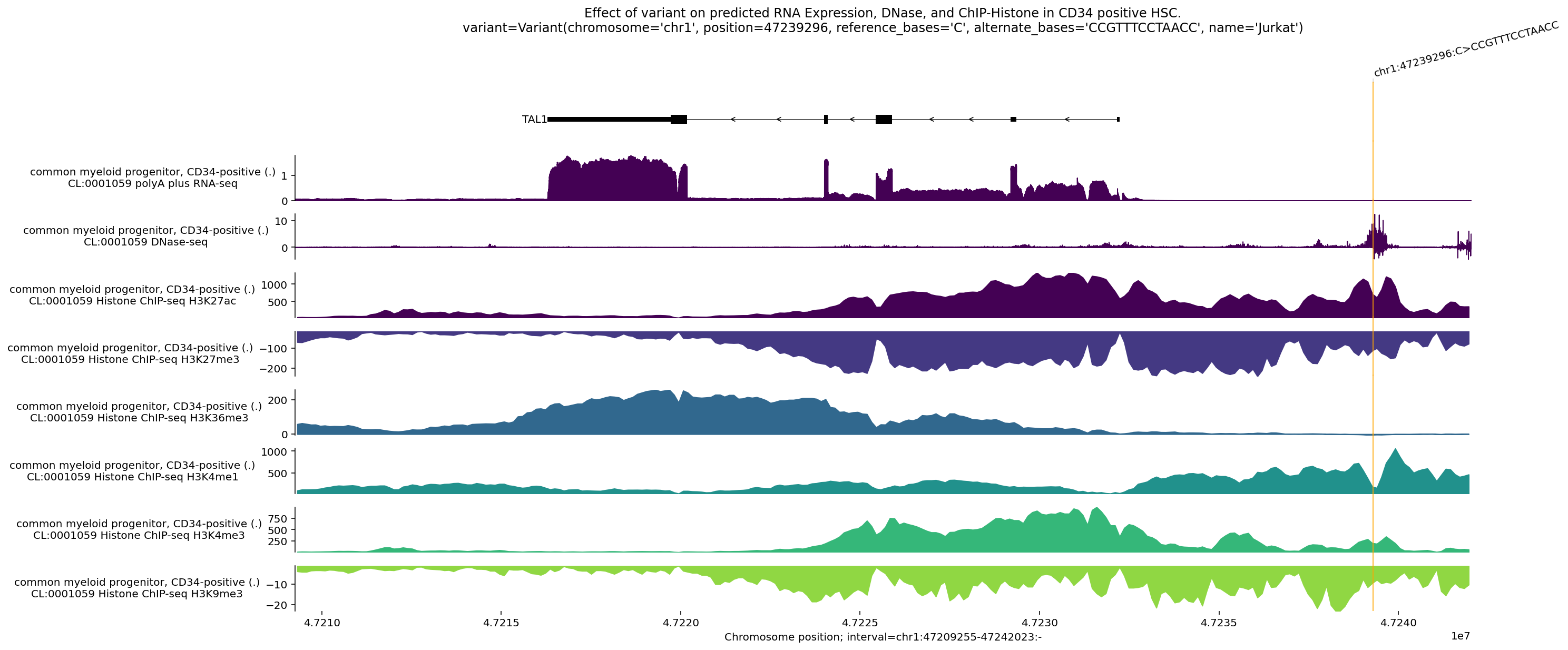

# Make predictions for sequences containing the REF and ALT alleles.
output = dna_model.predict_variant(
interval=tal1_interval.resize(2**20),
variant=variant,
requested_outputs={
dna_client.OutputType.RNA_SEQ,
dna_client.OutputType.CHIP_HISTONE,
dna_client.OutputType.DNASE,
},
ontology_terms=ontology_terms,
)
We will use some of the plotting tools provided with the
alphagenome.visualization package to build our plot.

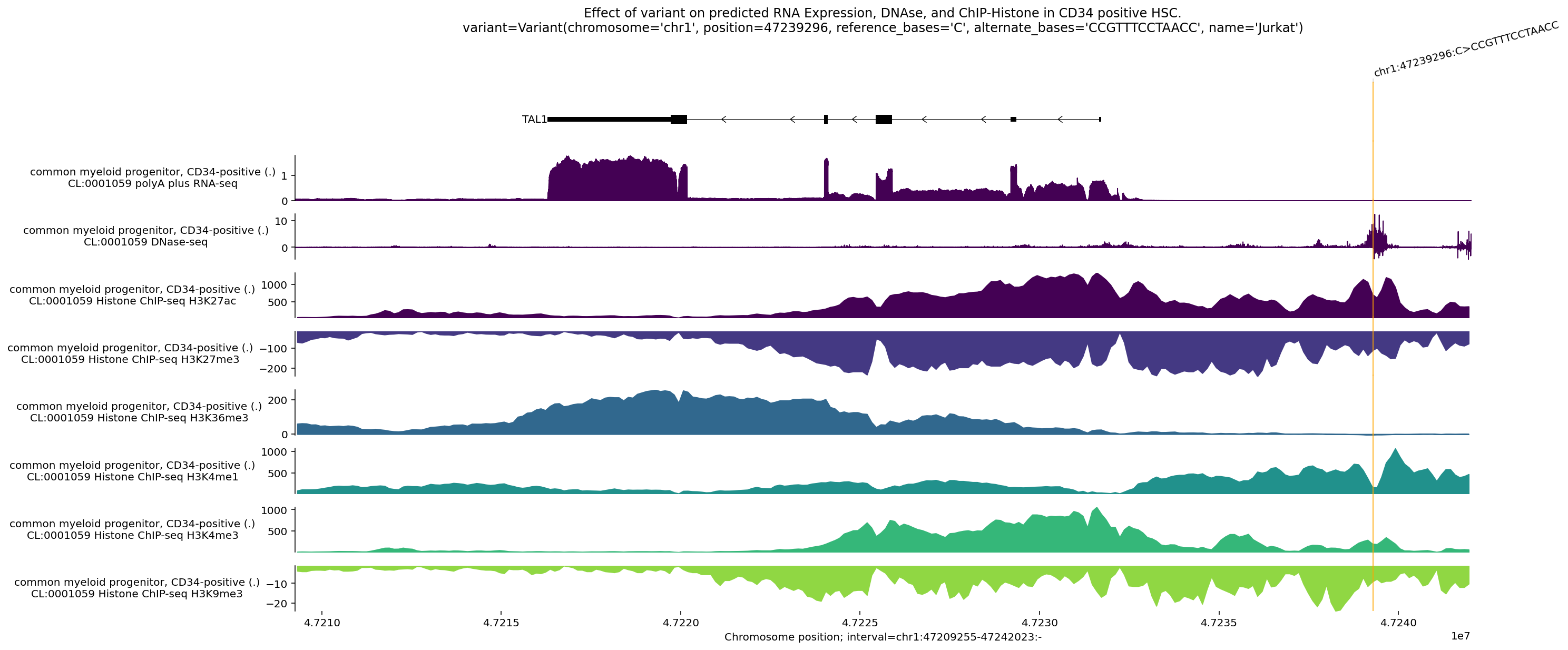

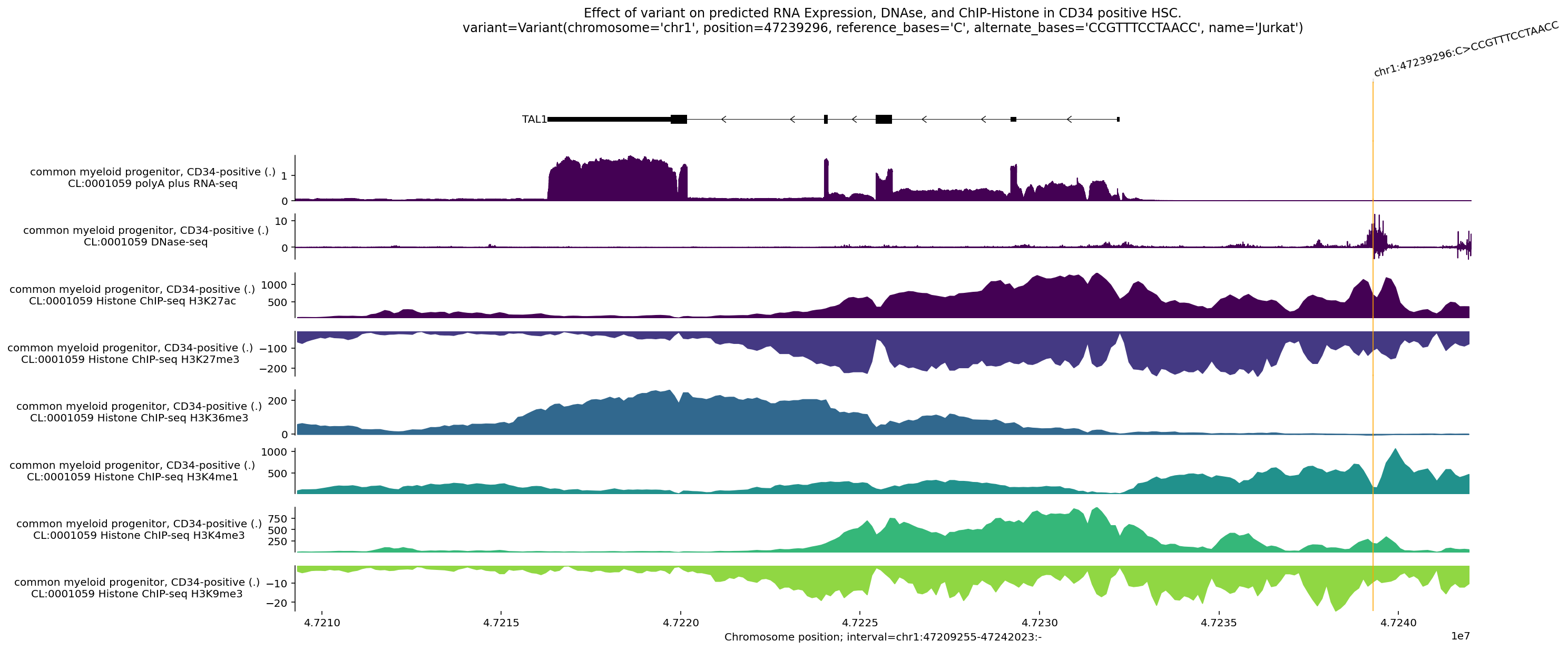

# Build plot.
longest_transcripts = longest_transcript_extractor.extract(tal1_interval)
_ = plot_components.plot(
[
plot_components.TranscriptAnnotation(longest_transcripts),
# RNA-seq tracks.
plot_components.Tracks(
tdata=output.alternate.rna_seq.filter_to_nonpositive_strand()
- output.reference.rna_seq.filter_to_nonpositive_strand(),
ylabel_template='{biosample_name} ({strand})\n{name}',
filled=True,
),
# DNAse tracks.
plot_components.Tracks(
tdata=output.alternate.dnase.filter_to_nonpositive_strand()
- output.reference.dnase.filter_to_nonpositive_strand(),
ylabel_template='{biosample_name} ({strand})\n{name}',
filled=True,
),
# Chip histone.
plot_components.Tracks(
tdata=output.alternate.chip_histone.filter_to_nonpositive_strand()
- output.reference.chip_histone.filter_to_nonpositive_strand(),
ylabel_template='{biosample_name} ({strand})\n{name}',
filled=True,
),
],
annotations=[plot_components.VariantAnnotation([variant])],
interval=tal1_interval,
title=(
'Effect of variant on predicted RNA Expression, DNAse, and ChIP-Histone'
f' in CD34 positive HSC.\n{variant=}'
),
)
This plot shows the difference between model predictions for the alternate
sequence (in which in alternate_bases, “CCGTTTCCTAACC”, have been inserted
into the genome at chromosome 1, position 47239296) and the reference sequence.
Interpreting this plot, we can see that:
RNA-seq coverage is above the horizontal, meaning that TAL1 is increased in the presence of the alternate sequence relative to the reference sequence.
DNAse-seq indicate changing accessibility near the site of the variant, and increased accessibility near the transcription start site of TAL1.
An increase in H3K27ac and H3K4me1 centered directly on the variant’s location, which mark active enhancers.
An increase in H3K4me3 near the transcription start site of TAL1, which mark active promoters.
An increase in H3K36me3 over the gene body, which mark actively transcribed genes.
A decrease in H3K27me3 and H3K9me3, which are associated with silencing.
Taken together, the model predicts the variant creates a de novo active enhancer element that activates the TAL1 promoter, leading to robust gene transcription.
Comparing predicted TAL1 expression change for cancer associated variants, compared to randomly shuffled variants#
Next, we will compare TAL1 expression changes for these cancer associated mutations, with synthetic, shuffled mutations at those same positions.
To do this, we will
Generate a set of shuffled background variants.
Use
score_variantto return a scalar value for each variant corresponding to the magnitude of predicted TAL1 gene expression change in the presence of the alternate allele (relevative to the referenece allele).Plot the predicted TAL1 expression change, comparing background variants to cancer associated ones.
The shuffled background variants will be matched to cancer associated variants,
grouped by position and the length of the alternate_bases.
# Preparing variant groups
eval_df = oncogenic_and_background_variants(
input_sequence_length=2**20, number_of_background_variants=3
)
# Additional annotations and variant groups.
eval_df['ALT_len'] = eval_df['ALT'].str.len()
eval_df['variant_group'] = (
eval_df['POS'].astype(str) + '_' + eval_df['ALT_len'].astype(str)
)
eval_df['output'] = eval_df['output'].fillna(0) != 0
eval_df['coarse_grained_variant_group'] = coarse_grained_mute_groups(eval_df)
# Score the variants in eval. Takes a minute or so.
scores = dna_model.score_variants(
intervals=eval_df['interval'].to_list(),
variants=eval_df['variant'].to_list(),
variant_scorers=[variant_scorers.RECOMMENDED_VARIANT_SCORERS['RNA_SEQ']],
max_workers=2,
)
clear_output()
The scores contain values for all genes in the interval, and all RNA-seq tracks in the model output. We’ll filter down to TAL1 and CD34-positive cells.
# Find the index corresponding to the TAL1 gene.
gene_index = scores[0][0].obs.query('gene_name == "TAL1"').index[0]
# Find the index for our cell type of interest.
cell_type_index = (
scores[0][0].var.query('ontology_curie == "CL:0001059"').index[0]
)
def get_tal1_score_for_cd34_cells(score_data):
"""Extracts the TAL1 expression score in CD34+ cells from the model output."""
# Return the specific score.
return score_data[gene_index, cell_type_index].X[0, 0]
eval_df['tal1_diff_in_cd34'] = [
get_tal1_score_for_cd34_cells(x[0]) for x in scores
]
Finally, we’ll loop through each group and make a plot.
plot_df = eval_df.loc[eval_df.REF != eval_df.ALT]
# Turn variant into a string for easier processing
plot_df['variant'] = plot_df['variant'].astype(str)
plot_df = plot_df.loc[
:,
[
'variant',
'output',
'tal1_diff_in_cd34',
'coarse_grained_variant_group',
],
].drop_duplicates()
facet_title_by_group = {
'47212072_22': 'chr1:47212072\n21 bp ins.',
'47212074_7': 'chr1:47212072\n21 bp ins.',
'47230639_1': 'chr1:47230639\nSNV',
'MUTE_2': 'chr1:47239296\n1 bp ins.',
'MUTE_3': 'chr1:47239296\n2 bp ins.',
'MUTE_4': 'chr1:47239296\n3 bp ins.',
'MUTE_other': 'chr1:47239296\n7-18 bp ins.',
}
plt_dict = {}
plt_list = []
for group in plot_df.coarse_grained_variant_group.unique():
subplot_df = pd.concat(
[plot_df.assign(plot_group='density'), plot_df.assign(plot_group='rain')]
)
subplot_df = subplot_df[subplot_df.coarse_grained_variant_group == group]
subplot_df = subplot_df[
~((subplot_df.plot_group == 'density') & (subplot_df.output))
]
col_width = np.ptp(subplot_df.tal1_diff_in_cd34) / 200
subplot_df['col_width'] = subplot_df['output'].map(
{True: 1.5 * col_width, False: 1.25 * col_width}
)
plt_ = (
gg.ggplot(subplot_df)
+ gg.aes(x='tal1_diff_in_cd34')
+ gg.geom_col(
gg.aes(
y=1,
width='col_width',
fill='output',
x='tal1_diff_in_cd34',
alpha='output',
),
data=subplot_df[subplot_df['plot_group'] == 'rain'],
)
+ gg.geom_density(
gg.aes(
x='tal1_diff_in_cd34',
fill='output',
),
data=subplot_df[subplot_df['plot_group'] == 'density'],
color='white',
)
+ gg.facet_wrap('~output + plot_group', nrow=1, scales='free_x')
+ gg.scale_alpha_manual({True: 1, False: 0.3})
+ gg.scale_fill_manual({True: '#FAA41A', False: 'gray'})
+ gg.labs(title=facet_title_by_group[group])
+ gg.theme_minimal()
+ gg.geom_vline(xintercept=0, linetype='dotted')
+ gg.theme(
figure_size=(1.2, 3),
legend_position='none',
axis_text_x=gg.element_blank(),
panel_grid_major_x=gg.element_blank(),
panel_grid_minor_x=gg.element_blank(),
strip_text=gg.element_blank(),
axis_title_y=gg.element_blank(),
axis_title_x=gg.element_blank(),
plot_title=gg.element_text(size=9),
)
+ gg.scale_y_reverse()
+ gg.coord_flip()
)
plt_dict[group] = plt_
clear_output()

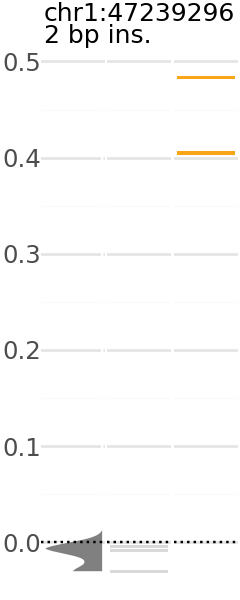

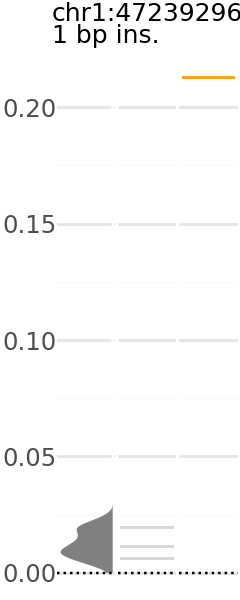

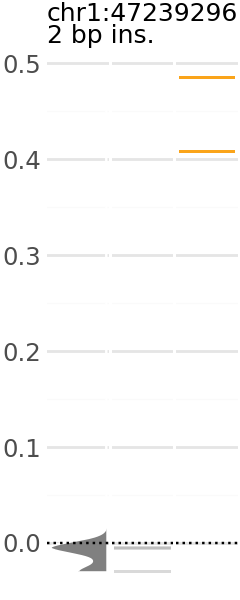

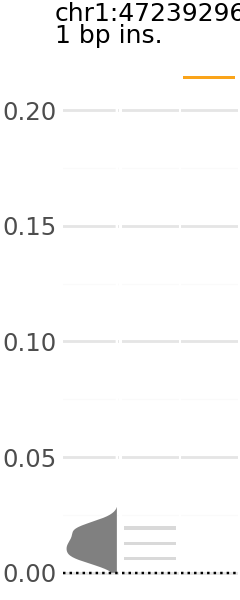

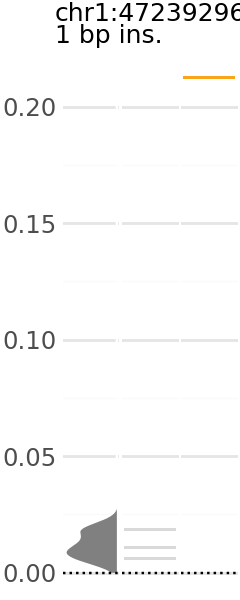

Now we can pick a plot and visualize. Each plot indicates the predicted expression level of a group of variants. In these plots, the y-axis is the change in TAL1 expression in the presence of the alternative allele relative to the reference allele.
Across the x-axis, there are three visualizations:
A density plot of TAL1 expression of shuffled variants (gray)
The individual TAL1 expression data points for the shuffled variants underlying the density plot (gray).
The individual TAL1 expression data points for the cancer associated variants in the group (orange).
Here are a few examples:
plt_dict['MUTE_2'].show()
plt_dict['MUTE_3'].show()
